Micro Sapphire Rods


    micro-sapphire-rods

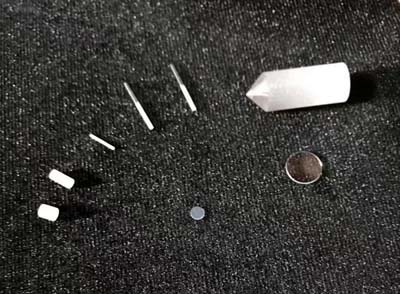

    Creator Optics ( CNCO ) can provide micro sapphire rods from Diameter 0.3 to 3.0mm. These rods have good polished round surface as well as general two plane high-precision polished surfaces. Super Precision machining technology ensures that these rods have no chips. They are preferred to be used in precision laser instruments, such as laser dental equipment, laser communication conntors and so on.

    These micro sapphire rods have following types: cylindrical rods, tapered rods, flat tapered rod, cuboid rod, etc.


micro-sapphire-rod-DWG micro-sapphire-tapered-rod-DWG

Common specifications of micro sapphire rods:

Size Range Dia0.3mm to 3mm round, customized available
Length 0.5mm to 150mm, customized available
Tolerance +/-0.01 for Diameter and +/-0.1mm for length, customized available
Surface Quality 40/20 or 20/10 for end surface, fine ground or polished for cylinder
Flatness 1/4 lambda per inch @633nm, 1/8 lambda per inch @633nm
Conicity < 1/100
Chamfer fine ground, commercial polished
Material synthetic sapphire monocrystal, C-cut KY / HEM / CZ sapphire

* For more informations or other materials and requests, please contact us.
