Home > Products > Prisms > Roof Prisms

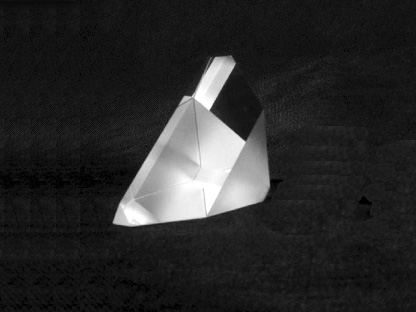

Optical Roof Prisms, customized



    roof-prisms-2


    The roof prism deviates or deflects the image through an angle of 90 degrees. Basically, the roof prism is a right-angle prism whose hypotenuse has been replaced by a 90-degree total internal reflection roof. Cleanliness and quality of the total internal reflection roof surfaces is important. The 90-degree deviation applies only to rays, which are precisely normal to the entrance and exit faces. All other rays are deflected by varying amounts in exactly the same manner of an ordinary right-angle prism.

    The roof prism finds applications in situations that demand both right-angle deflection and image erection, such as in some instrument viewfinders.

    Creator Optics ( CNCO ) can custom optical roof prisms made of optical glass and optical crystal, such as BK7, fused silica, sapphire, etc.

    The specifications of customized optical roof prisms are as follows:

roof-prism roof-prism-DWG

dot Material: BK7, sapphire, fused silica
dot Size arange: 10mm to 50mm, customized available.
dot Size tolerance: +/-0.2mm
dot Surface Quality: 60/40, 40/20
dot Surface Accruacy: 1/4 lambda per inch at 633nm
dot Chamfer (Bevel) : 0.2mm to 0.5mm



* For more information or other materials and requests, please contact us.
